REMOTE READING THERMOMETER                      SPECIFICATIONS

Gas Actuated Remote Reading Thermometers

Shanghai Quality Well builds all of our Gas Actuated Remote Reading thermometers in our factory to our customer's specifications using only the highest quality parts and workmanship.

Our thermometers are available in 2", 2.5", 4" and 6" 304 stainless steel cases in either bottom or back connection configurations. Bottom connection models are available with flanges for wall or panel mounting. Back connection models are available with flanges or u-clamps for panel mounting. All industry standard ranges in F only, C only or F&C/C&F dual scales are available. Custom dials are also available upon request.

Capillary lengths can be made to suit any application up to 100' in length. Standard sensing bulbs are made with 304 stainless steel in 1/2" OD x 6" length, but can be made as short as 4" in length or longer as required. 316 stainless steel is also optional. Thermowells and unions for mounting the sensor are also available.

Due to our large number of available options, each thermometer is custom manufactured to YOUR specifications - please contact our team for a personalized quotation.

25 BTM Gas.webp
Electric Contact Remote.webp
2 Back Remote.webp
4 Back Gas Remote.webp
Gas Remote 6.webp
2.5  Gas Remote Back.jpg

DIGITAL REMOTE READING THERMOMETERS

DST1001 ABS Solar Digital Remote Reading Thermometer

Solar Digital ABS Remote.jpeg

Case Size:                28.7mm x 114mm

Case Material:         ABS in white or black color or as requested.

Lens:                        Polycarbonate

Probe:                      304 stainless steel, 30mm x 5mm

Capillary:                 Brass, PVC coated.

Capillary Length:    12" to 120", back connection

Display:                    LCD, 4 digits

Range:                       -40/160 F & -40/70 C dual scale with switch.

Accuracy:                 +/-1 C

Power:                      Solar with one AAA battery back-up power.

Custom Logo:          Available upon request.

DST200 Digital Remote Reading Thermometer

Solar Digital Remote.jpeg

Dial Size:                2", 50mm

Case:                       304 stainless steel, with front flange or u-clamp.

Lens:                       Polycarbonate

Probe:                     304 stainless steel, 30mm x 5mm

Capillary:                Brass, PVC coated.

Capillary Length:   12" to 120". back connection

Display:                   LCD, 4 digits

Range:                     -58/300 F & -50/150 C dual scale with switch.

Accuracy:                +/-1 C

Power:                      Solar

Custom Logo:         Available upon request.

TPM-10 Digital Remote Reading Thermometer

TPM-10 (5).jpg

Case Size:               48.5mm x 28mm x 15.2mm

Case:                       ABS, white or black color.

Lens:                       Glass

Probe:                     304 stainless steel.

Capillary:                Brass, PVC coated.

Capillary Length:   1 meters, back connection.

Display:                   LCD, 4 digits

Range:                     -58/158 F or -50/110 C.

Accuracy:                +/-2°F or +/-1 C.

Power:                      1.5 V battery.

SPECIAL APPLICATION REMOTE READING THERMOMETERS

2.58" Hot Water Remote Reading Thermometer

Water Remote.webp

Dial Size:              2-5/8"

Case:                     Steel, painted black

Bezel:                     Steel, plated, crimped on.

Lens:                     Glass

Connection:         Back

Probe:                   Brass, .33"x4", 8.5mm x 100mm. Other sizes available.

Capillary:             Brass, PVC coated. 78" length standard.

Connection:         1/2" NPT brass union. Other connections available.

Range:                  120/280 F. Other ranges available upon request.

Accuracy:             +/-2%

IP Rating:             IP55

221RF21011P Remote Reading Thermometer

2.5 square case plastic remote.jpg

Dial Size:             2.5", 63mm

Case:                    Plastic

Bezel:                   Plastic, pressed on.

Lens:                    Glass

Connection:        Back

Probe:                  Brass, .3"x4", 8mm x 100mm. Other sizes available.

Capillary:             Brass, PVC coated, 40" length standard.

Connection:         1/2" NPT brass union. Other connections available.

Range:                  0/120 C. Other ranges available upon request.

Accuracy:             +/-2%

IP Rating:             IP65

200RF20011S Remote Reading Thermometer


Dial Size:             48mm x 48mm Square

Case:                    Plastic

Lens:                    Acrylic, push-in.

Connection:        Back

Probe:                  Copper, 0.25"x1.24". Other sizes available.

Capillary:            Brass, PVC coated, 47" length standard.

Range:                 0/120 C. Other ranges available upon request.

Accuracy:            +/-2%

IP Rating:            IP45

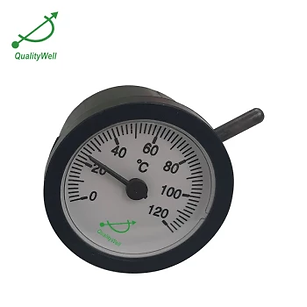

200RF2011C Remote Reading Thermometer


Dial Size:             2", 56mm

Case:                    Plastic

Lens:                    Polycarbonate

Connection:        Lower back

Probe:                  Copper, 0.23"x1.24". Other sizes available.

Capillary:             Brass, PVC coated. 47" length standard.

Range:                  0/120 C. Other ranges available upon request.

Accuracy:             +/-2%

IP Rating:             IP45

221RF12011 Remote Reading Thermometer


Dial Size:            2.5", 3" & 4"; 63mm, 80mm, 100mm.

Case:                   Plastic

Lens:                   Polycarbonate

Connection:       Bottom

Probe:                 Copper, 0.23"x1.24". Other sizes available.

Capillary:            Brass, PVC coated. 47" length standard.

Range:                 -40/40 C. Other ranges available upon request.

Accuracy:            +/-2%

IP Rating:            IP45
